Repair of Stained Glass and new Protective Covering at Reedy Branch Free Will Baptist Church in Winterville, NC
In the winter of 2015, Michael Laws met with Reedy Branch Free Will Baptist Church in Winterville, NC. He examined the windows. The church has (19) opalescent glass windows and a hand-stained pictorial glass window in a light box behind the pulpit. The windows are relatively old (50+ years) and made by at least two different companies. The pictorial glass window of the "Good Shepherd" is in good shape. It was produced by High Point Art Glass, a company that is now out of business, but produced many beautiful and well-built stained glass windows throughout the Carolinas. A few of the opalescent glass windows were produced by High Point Art Glass as well, and they are in relative good shape. Most of the other opalescent glass windows were produced by another maybe older company, and they are not in as good as shape. They have bulges and new braces. Some of the sections have came apart. Putty is loose in places. Also, all of the windows have a thin 1/8" storm glass covering them.
In the fall of 2015, Laws Stained Glass Studios comes to the church to repair the windows and provide new protective covering. The scope of the work includes:
- Straighten bulges and add new brace bars where necessary.
- Clean the windows on the inside and the outside.
- Chip off loose putty, re-glaze, and paint the glazing.
- Push sections of leaded glass that have come apart back together and re-solder.
- Furnish and install new 1/4" Lucite acrylic as the protective covering using 1/2" x 1/2" white aluminum stops to hold it in place.
- 1" vent button placed in the Lucite protective covering to help prevent condensation.
.jpg)
Windows from outside on initial visit
.jpg)
Same window as the picture to the left, but viewed from the outside
.jpg)
.jpg)
.jpg)

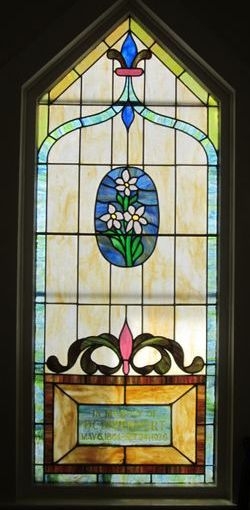

Opalescent glass window with bulging at the bottom and need of new/additional braces
.jpg)
Hand-Stained Pictorial Glass Window of the "Good Shepherd" made by High Point Art Glass which is in good shape
.jpg)
Bulging window that needs straightening and more braces
.jpg)

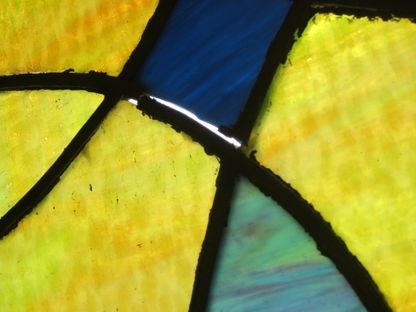

Notice how the window has bulged so much that the lead or solder joint has given away and you can see daylight through it
.jpg)
Close-up showing how the lead and glass has separated where daylight can be see through it
.jpg)
Notice how bad the window is bulging toward the outside
.jpg)
Notice the broken glass here
.jpg)
After straightening the bulge and applying additional braces
.jpg)
After straightening the bulge and applying additional braces
.jpg)
Note the straightened bulge and re-soldered leadline so that no daylight shines through
.jpg)
The new 1/4" Lucite acrylic protective covering held in place by 1/2" x 1/2" white aluminum stop; note the (2) vent buttons at the bottom
.jpg)
Clean windows with new 1/4" Lucite acrylic protective covering
.jpg)
Clean windows with new 1/4" Lucite acrylic protective covering
