Stained Glass Windows at New Bethel Independent Church in Forest City, NC

     In 2015, Laws Stained Glass Studios provided (17) opalescent glass windows for New Bethel Independent Church in Forest City, NC.  The six sanctuary windows (size 35" wide x 113" high with a pointed top) contained a 12" round Biblical scene and a memorial plate.  The one opalescent glass transom (size 32" wide x 27" high) did not have artwork.  The eight front windows (size 34" wide x 62" high) each contained a 12" round scene along with a memorial plate.  The two side windows (size 35" wide x 88" high) both contained a 12" round scene and a memorial plate as well.
     Laws installed the opalescent glass windows into the existing wood frame.  Laws provided new inside stops and painted the outside wood frame.  Laws installed 1/4" Lucite acrylic on the exterior as the protective covering.  The Lucite is caulked and  floated in place with two rows of 1/2" x 1/2" white aluminum stop.  Many of the front windows had rotten sills.  Laws replaced these wooden sills and made them look new.
     In 2016, Laws Stained Glass Studios returned to install an interior transom and some panes of opalescent glass.

Existing window before the installation

View of the church from the side before the installation

View of the sanctuary from the front before the installation



View of the existing window from the inside before the installation

Close-up of the outside wood frame at the bottom

Close-up of the top inside of the window

Close-up of the bottom of the inside the window



Rotten wood sills on the front windows

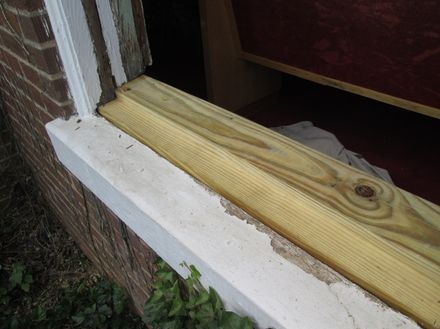

Replaced wood sills on the front windows



Another rotten wood sill

View of the rotten sill replaced with new wood



Opalescent glass window with a 12" round Biblical scene of "The

Annunciation" and one memorial plate, installed into the existing wood frame.

Close-up showing the inside stops notched at the braces

Close-up of the window at the bottom showing the steel braces

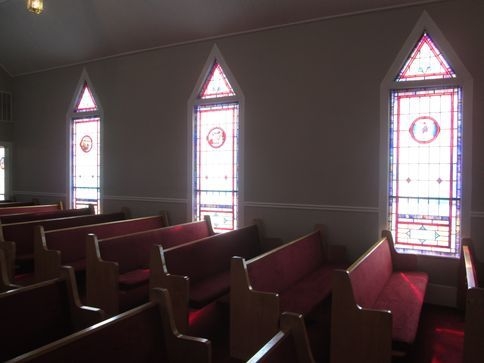

View inside the sanctuary with the new windows



Opalescent glass windows with 12" round Biblical scenes

View of the front windows with 12" round scenes

Opalescent glass windows with 12" round Biblical scene and a memorial plate



View of one of the windows at the front of the church

Sanctuary window with a 12" round Biblical scene



Exterior view of the opalescent glass windows with new 1/4" Lucite acrylic as the protective covering

Close-up showing a front window with a replaced sill and new 1/4" Lucite as the protective covering

View of the 1/4" Lucite acrylic installation showing the Lucite held in place with (2) rows of 1/2" x 1/2" white aluminum stop



Interior transom
