Stained Glass Windows at Walstone Baptist Church in Fayetteville, NC

     In 2013, Laws Stained Glass Studios provided (13) opalescent glass windows for Walstone Baptist Church in Fayetteville, NC.  The ten sanctuary windows (size 48" wide x 96" high) contained a 12" x 16" medallion Biblical scene and a memorial plate.  The one opalescent glass transom (size 72" wide x 42" high) did not have artwork.  The two front windows (size 48" wide x 96" high) have a cross in them along with a memorial plate.
     Laws installed the opalescent glass windows into the existing wood frame.  The outside wood perimeter was flashed with white aluminum flashing.  Laws installed 1/4" Lucite acrylic on the exterior as the protective covering.  The Lucite is caulked and  floated in place with two rows of 1/2" x 1/2" white aluminum stop.  1" round vents were placed in the Lucite to allow for ventilation.

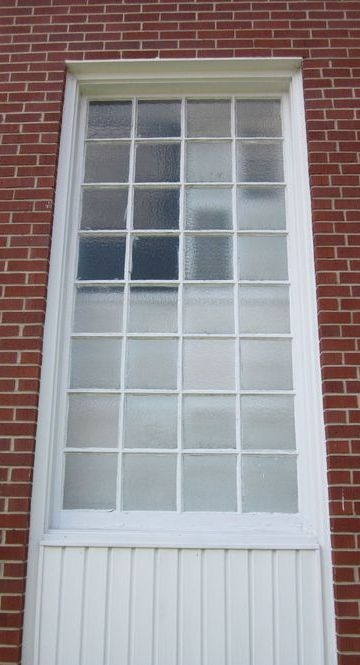

Existing window before the installation

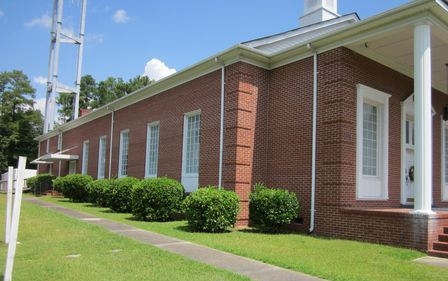

View of the church before the installation

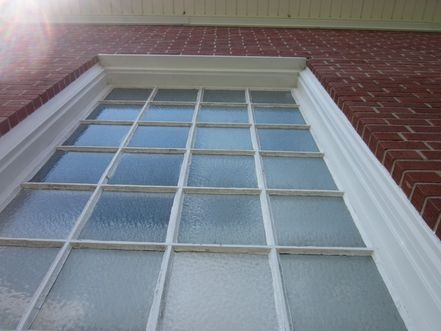

Close-up of the existing window from the outside

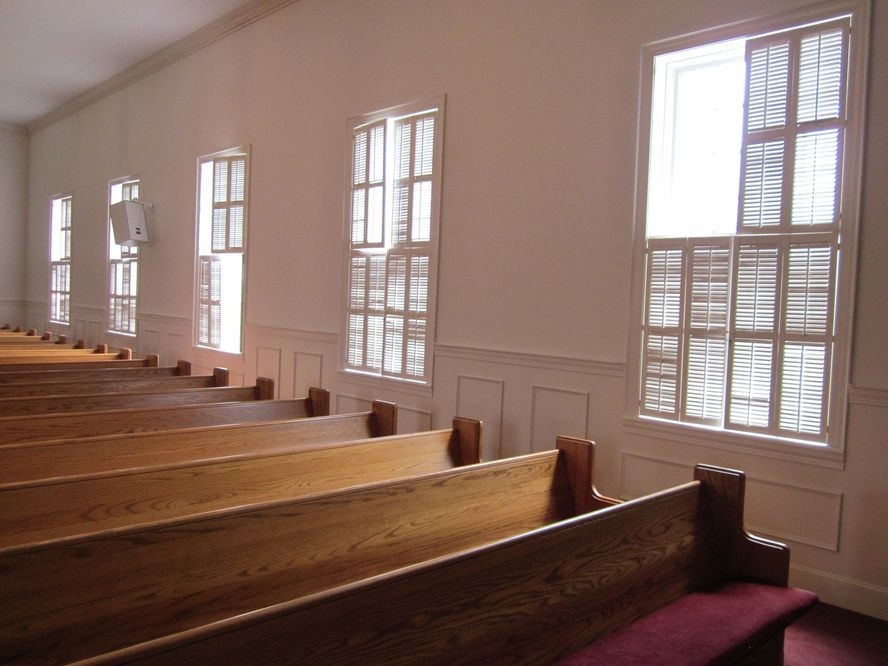

View of the existing windows from the inside before the installation

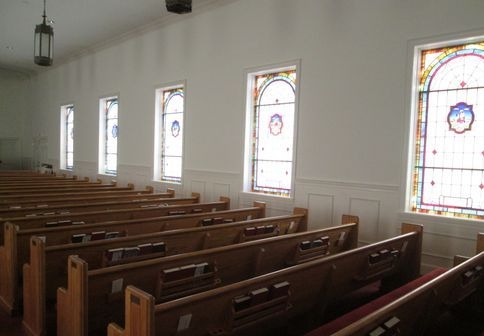

Opalescent glass windows with 12" x 16" medallion Biblical scenes and a memorial plate

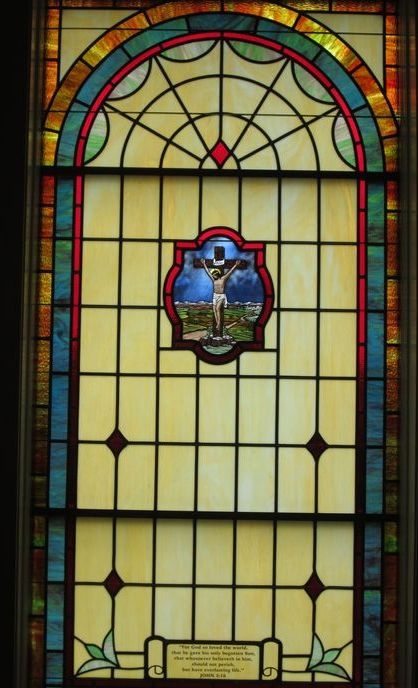

Opalescent glass window, with a 12" x 16" medallion Biblical scene of "The

Crucifixion" and one memorial plate, installed into the existing wood frame.

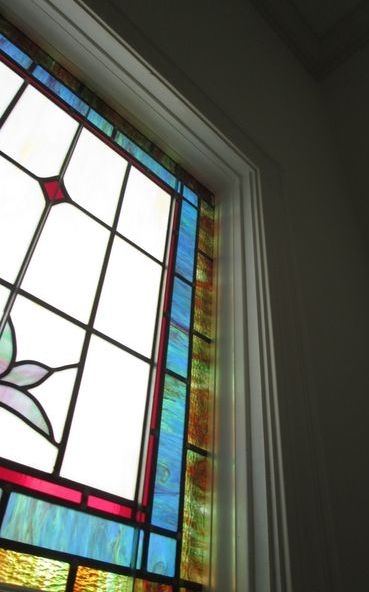

Close-up showing the inside stops notched at the braces

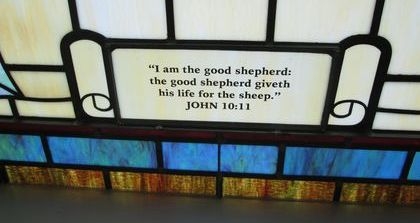

Close-up of the memorial plate section at the bottom



Opalescent glass windows with 12" x 16" medallion Biblical scenes

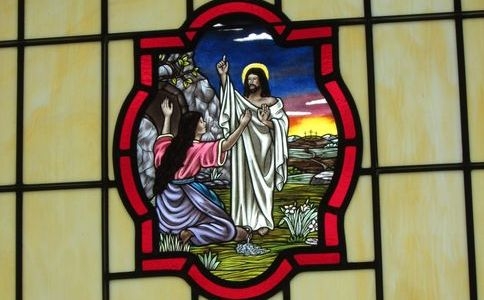

Close-up of a 12" x 16" medallion Biblical scene of "The Resurrection"

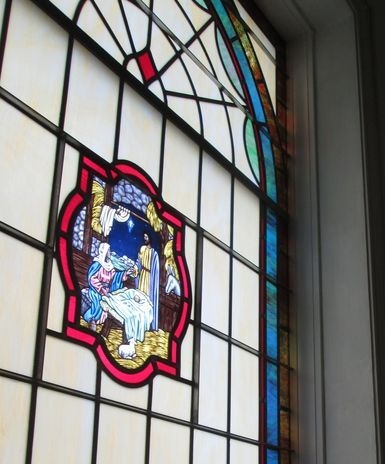

Opalescent glass windows with 12" x 16" medallion Biblical scene and a memorial plate

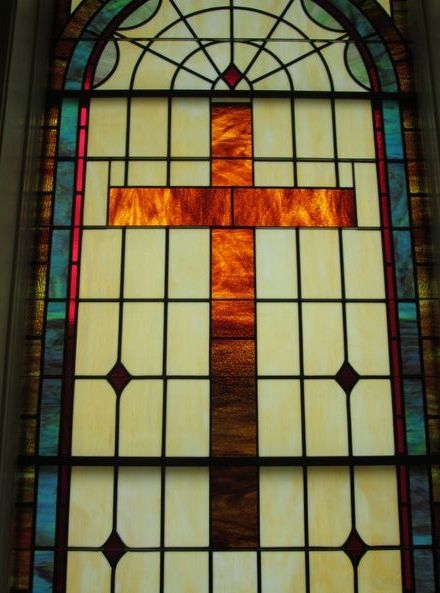

View of one of the cross windows at the front of the church

Close-up view of the transom window



Exterior view of the opalescent glass windows with new 1/4" Lucite acrylic as the protective covering

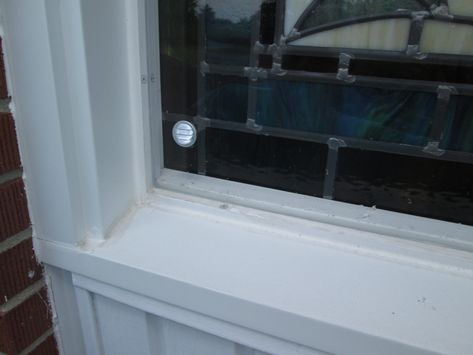

Close-up showing the 1" round vent in the Lucite and the new white aluminum flashing

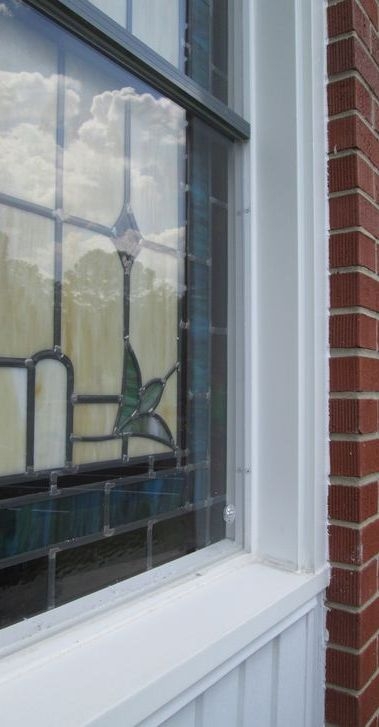

Close-up of the 1/4" Lucite acrylic installation showing the exterior wood flashed with white aluminum flashing and the Lucite held in place with (2) rows of 1/2" x 1/2" white aluminum stop

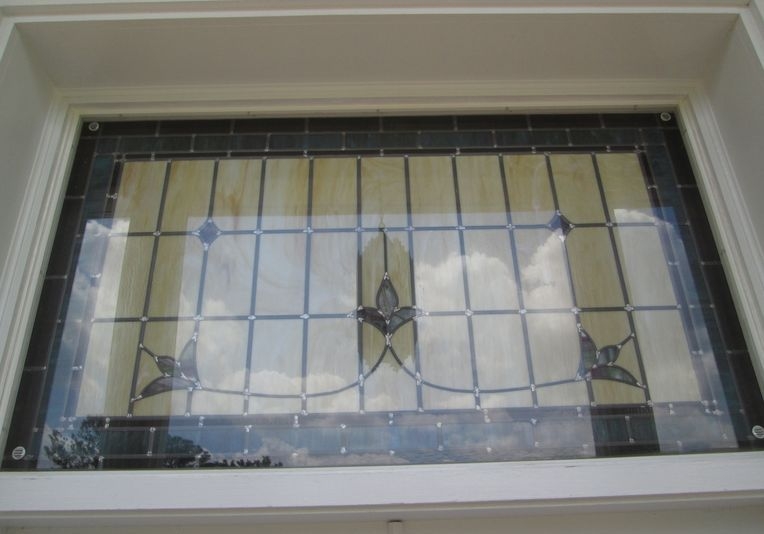

Close-up of the opalescent glass transom from the outside with 1/4" Lucite acrylic as the protective covering
