New Protective Covering at Belews Creek Christian Church in Belews Creek, NC

     In 2012, Laws Stained Glass Studios installed new 1/4" Lucite acrylic protective covering over the existing stained glass windows at Belews Creek Christian Church in Belews Creek, NC.  Laws installed the 1/4" Lucite over 12 sanctuary windows and a transom.  The existing opalescent glass windows were in good shape and did not require much repair work.  One broken piece of glass was replaced.  The ventilator sections had some loose putty which was replaced and repainted.  Two of the front windows, which were not leaded windows but had opalescent glass glazed into lights, received flashing over their exterior wooden frame.  The exterior of all the windows was cleaned.  The 1/4" Lucite acrylic was installed using (2) rows of 1/2" x 1/2" white aluminum stop.

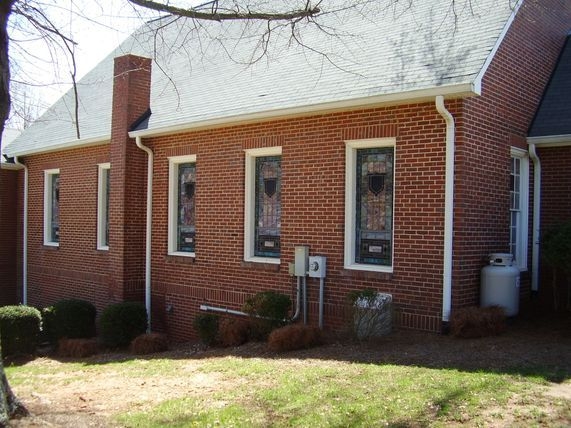

Existing opalescent glass windows before protective covering was installed

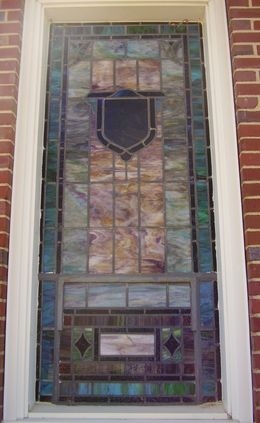

Close-up of an existing window from the outside

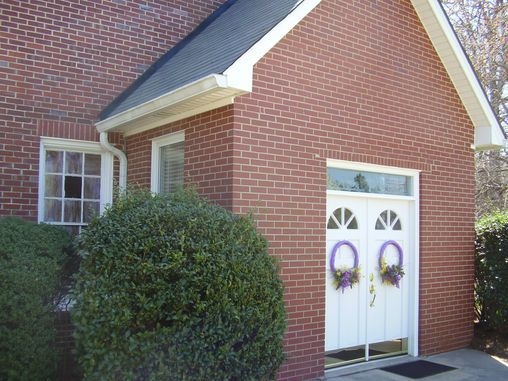

Existing windows before protective covering installation

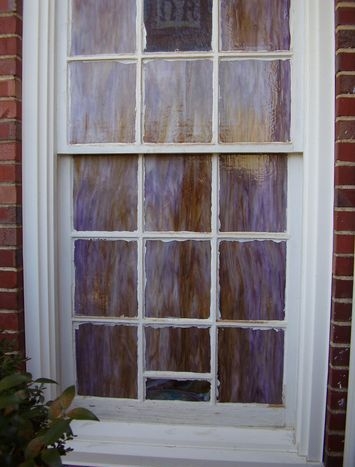

Close-up of one of the front windows that is opalescent glass glazed into the wooden sash.  This window is not leaded.

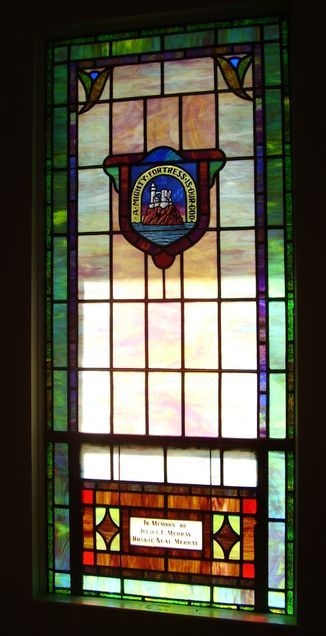

View of one of the existing sanctuary windows from the inside.  Note that the window is very straight and does not have any bulges.

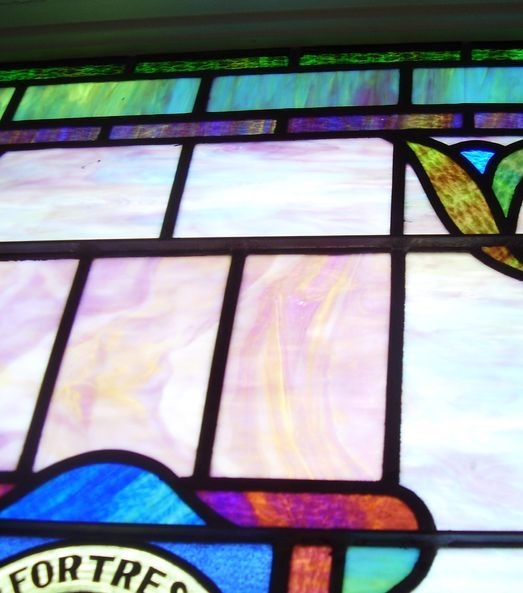

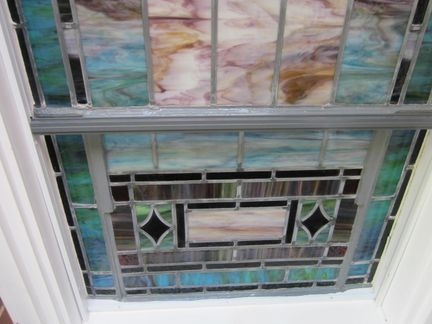

Close-up showing some of the beautiful colors in these windows.

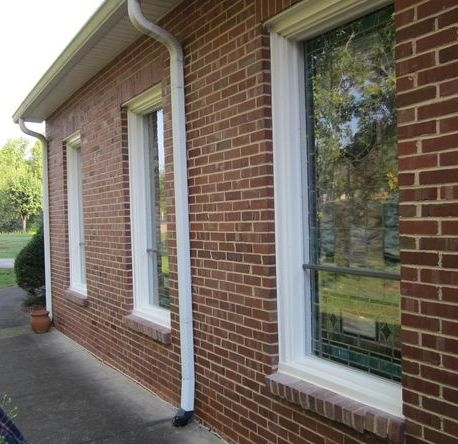

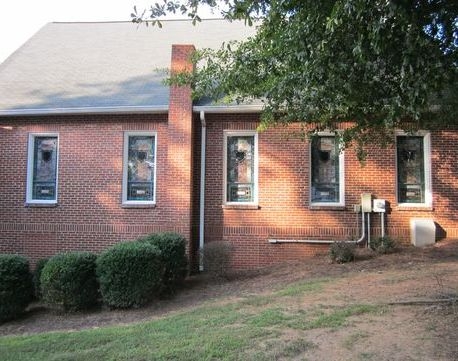

Exterior view of the new 1/4" Lucite acrylic protective covering

New 1/4" Lucite acrylic protective covering

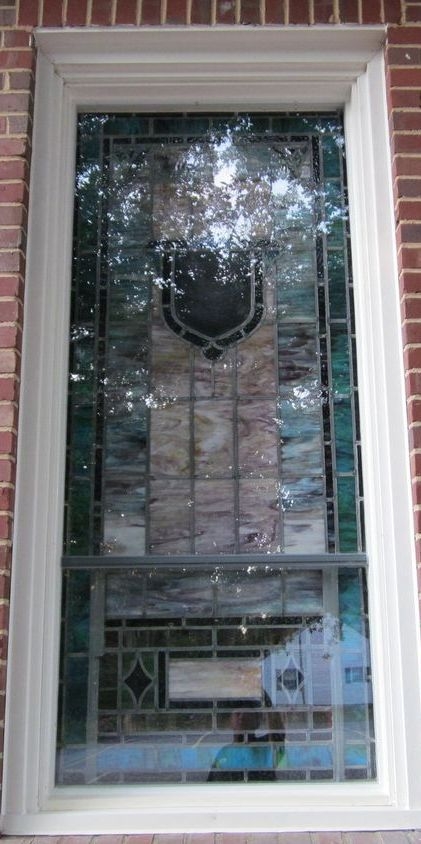

New 1/4" Lucite acrylic protective covering installed with (2) rows of 1/2" x 1/2" white aluminum stops



New re-glazed and re-painted ventilator section

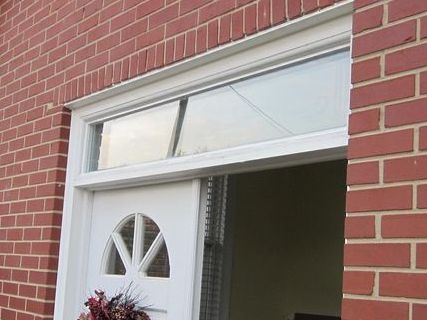

New 1/4" Lucite acrylic protective covering over the transom
